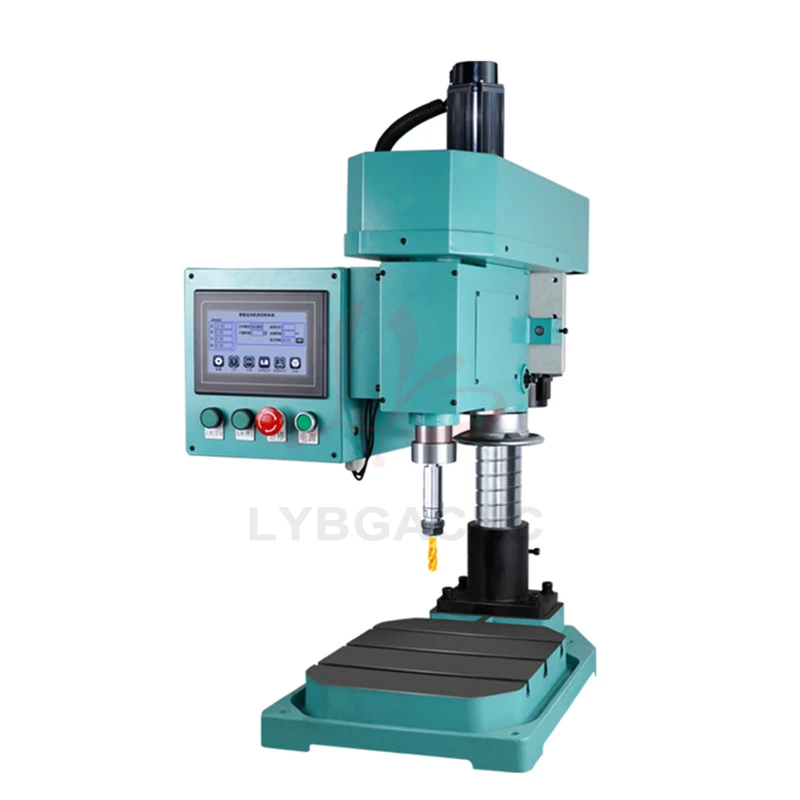

M3-M16-M36 CNC Electric Industrial Precision Tapping Machine Servo Motor Electric Tapper Drilling With Chucks Threading Machine

Industrial Precision Touch Screen Tapping Machine Vertical Type Universal Electric Tapper Threading Machine M3-M16-M36

Electric tapping machine is applicable to all machinery manufacturing industry, machine tool, mould
machinery, plastic machinery, printing machinery, packaging machinery manufacturers, engineering machinery, automobile motorcycle parts, aviation engines, rolling stock, tobacco machinery and general machinery and other
industries.

Electric tapping machine for workpiece materials: electric tapping machine can be in the lead, copper,A3 steel, cast iron, cast iron, Q235, 45#steel, S136 steel, 718 steel, ace,NAK80 die steel and other metal materials for easy tapping operations.

Parameters:
Model: M3-M16 (SKB11016)

Voltage: 220V

Motor Power: 1200W

Electric current:50HZ/60HZ

Spindle speed: 0-625/RPM

Chuck type:  M3 M4 M5 M6/8 M10 M12 M14 M16

Control panel: Touch screen

Tap capacity: M3-M16

Packing size: 55CM*55CM*80CM

Weight: 130kg

Model: M3-M20 (SKB11020)

Voltage: 220V

Motor Power: 1200W

Electric current:50HZ/60HZ

Spindle speed: 0-416/RPM

Chuck type:  M3 M4 M5 M6/8 M10 M12 M14 M16 M18/20

Control panel: Touch screen

Tap capacity: M3-M20

Packing size: 55CM*55CM*80CM

Weight: 130kg

Model: M6-M24 (SKB11024)

Voltage: 220V

Motor Power: 1200W

Electric current:50HZ/60HZ

Spindle speed: 0-250/RPM

Chuck type:  M6/8 M10 M12 M14 M16 M18/20 M22 M24

Control panel: Touch screen

Tap capacity: M6-M24

Packing size: 55CM*55CM*80CM

Weight: 130kg

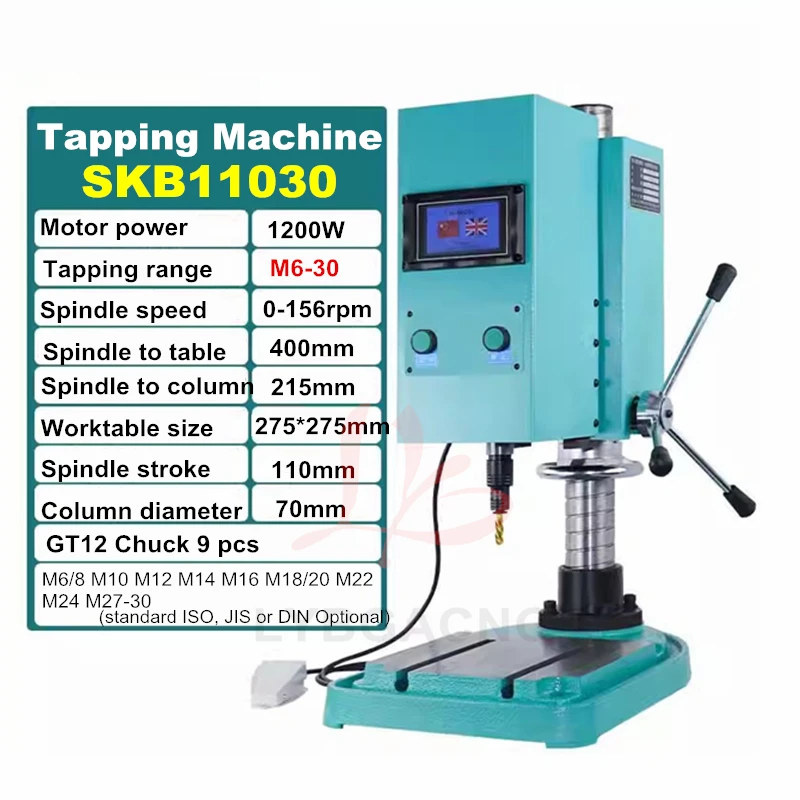

Model: M6-M30(SKB11030)

Voltage: 220V

Motor Power: 1200W

Electric current:50HZ/60HZ

Spindle speed: 0-156/RPM

Chuck type:  M6/8 M10 M12 M14 M16 M18/20 M22 M24 M27/30

Control panel: Touch screen

Tap capacity: M6-M30

Packing size: 55CM*55CM*80CM

Weight: 130kg

Model: M6-M36 (SKB11036)

Voltage: 220V

Motor Power: 1200W

Electric current: 50HZ/60HZ

Spindle speed: 0-100/RPM

Chuck type:  M6/8 M10 M12 M14 M16 M18/20 M22 M24 M27/30 M33 M36

Control panel: Touch screen

Tap capacity: M6-M36

Packing size: 55CM*55CM*80CM

Weight: 130kg

Model:Drilling and tapping integrated machine

Warm Tips:

1.The Chuck standard ISO
Chuck, If You need JIS or DIN, please message us;

2.The tapping machine does not contain bottom mounting table

Because mounting table is made of cast iron, very heavy, freight is very expensive,

so we suggest that customer can make it by themself or buy it in local

Thank you very much!
